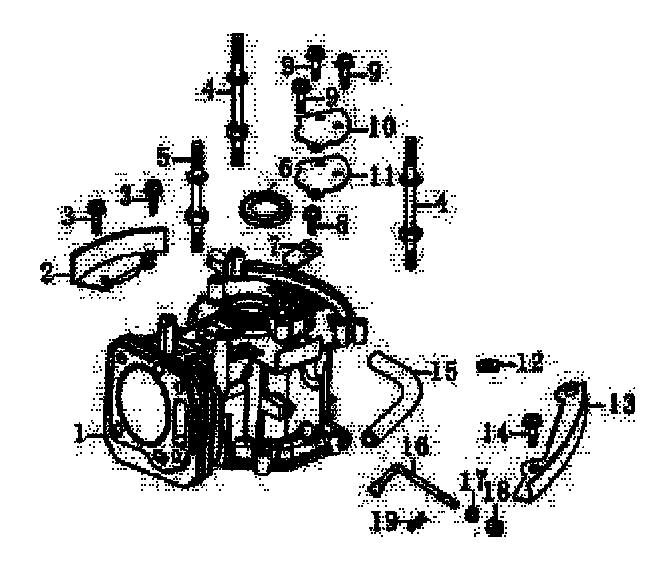

ROV00092 - Crankcase

Please use your mouse to zoom in and out for more detailed view

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	L1108100520001	NO LONGER AVAILABLE	N/A	POA
002	L1602000220001	NO LONGER AVAILABLE	N/A	POA
003	L3801400130005	BOLT,FLANGE M6*16(ALL MODELS)	£1.95	Add
004	L3808500060001	BOLT,STUD 6*85(ALL MODELS)	£4.36	Add
005	L3808500020001	BOLT,STUD 6*78.5(ALL MODELS)	£4.27	Add
006	L3806503350001	OIL SEAL	£6.26	Add
007	L1402500060001	REED VALVE (ALL MODELS)	£9.68	Add
008	L3801400110004	BOLT,FLANGE M6*10(ALL MODELS)	£1.82	Add
009	L3801400010006	BOLT,FLANGE M6*12(ALL MODELS)	£1.82	Add
010	L1108400100001	CAP,BREATHER CHAMBER(ALL MODEL	£4.62	Add
011	L1108500100001	PACKING,BREATHER CHAMBER(ALL)	£4.04	Add
012	L3808215900001	NO LONGER AVAILABLE	N/A	POA
013	L1602000330001	NO LONGER AVAILABLE	N/A	POA
014	L3801400670003	BOLT,FLANGE M6*12(ALL MODELS)	£1.88	Add
015	L3807405220001	NO LONGER AVAILABLE	N/A	POA
016	L1716300100001	SHAFT,GOVERNOR ARM(ALL MODELS)	£4.85	Add
017	L3804505310001	WASHER 6131 (ALL MODELS)	£1.75	Add
018	L3806503380001	OIL SEAL 6114	£4.27	Add
019	L3813500040001	PIN,LOCK (ALL MODELS)	£1.59	Add
