MTD014420 - Basic machine

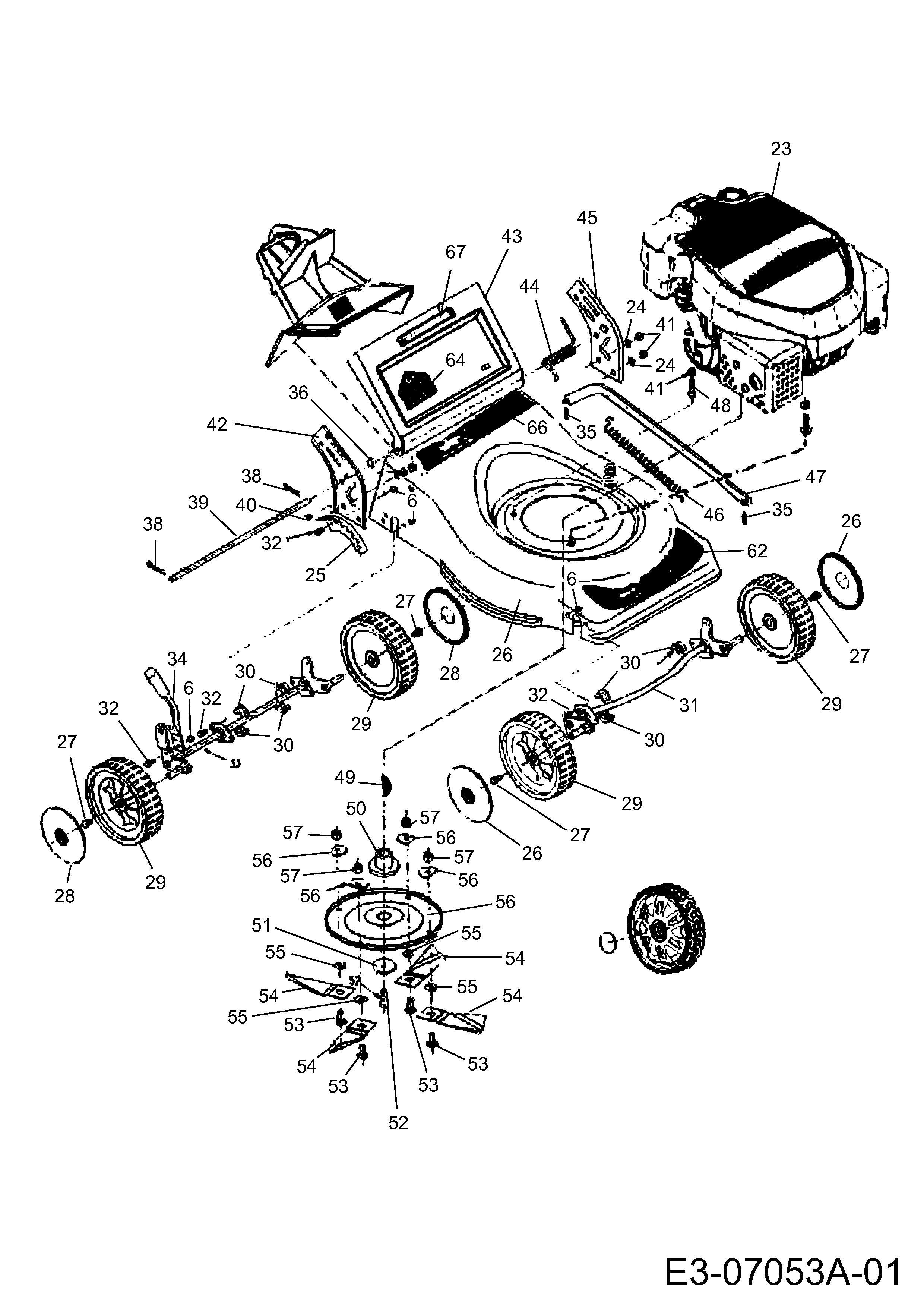

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD014420

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
006 GB61826 NUT NYLOC(ALL S/B MODELS) £1.58 Add
023 L04080129 ROVER i5000 LCOWL 1P65FA 15 £450.20 Add
024 GB9718 WASHER FLAT 8MM(ALL S/B MODELS N/A POA
025 G1810038 RACK HEIGHT ADJ. £5.76 Add
026 G18.3A-R1 N/A POA
027 GB5787816 BOLT WASHER HEAD HEX M8 X16MM £1.89 Add
028 G1801001 HUB CAP S/B £2.17 Add
029 G1801000 WHEEL 7"X1.75" S/B MODELS £14.17 Add
030 G1801 BEARING NYLON (ALL S/B MODELS) £2.56 Add
031 G1810032 SHAFT FRONT ASSEMBLY £15.78 Add
032 GB5787616 BOLT FLANGE HEX HD M6X16MM(ALL £2.17 Add
033 G1810044 AXLE ASSY.REAR £20.23 Add
034 G1810036 LEVER CUTTING HEIGHT ADJ. £5.01 Add
035 GXSZ56-1-17 N/A POA
036 G1810057 SPACER SLEEVE £2.17 Add
038 GXSS4606 R CLIP (ALL S/B MODELS) £1.51 Add
039 GXSS4604 FLAP ROD(ALL S/B MODELS) £6.62 Add
040 GB801816 BOLT SQ NECK M8X16MM(ALL S/B) £1.81 Add
041 GB61828 NUT NYLON LOCK M8(ALL S/B) £1.58 Add
042 G188AR1 RIGHT BRACKET RED S/B N/A POA
043 G1810010 REAR DISCHARGE FLAP(ALL S/B) £14.04 Add
044 G1805 FLAP SPRING (ALL S/B MODELS) £3.31 Add
045 G187AR1 LEFT BRACKET RED S/B N/A POA
046 G1810016 CONBAR SPRING(ALL S/B MODELS) £3.67 Add
047 G1810035 STRAP,HT ADJUST £5.27 Add
048 GB5787-840 N/A POA
049 GB1099-46516 WOODRUFF KEY (ALL S/B MODELS) £1.71 Add
050 G1820002 DISC BOSS (ALL S/B MODELS) £15.70 Add
051 G1804 WASHER,NYLON1-1/2ODx5/16IDx1/8 £1.66 Add
052 G1808 BOLT HEX HD(ALL S/B MODELS) £2.17 Add
053 G18401 BLADE BOLT (ALL S/B MODELS) N/A POA
054 G1800081 BLADE (ALL S/B MODELS) £3.86 Add
055 G18403 TENSION WASHER (ALL S/B MODELS N/A POA
056 G18402 D PLATE (ALL S/B MODELS) N/A POA
057 GB618210 NYLOC NUT (ALL S/B MODELS) £1.58 Add
058 G18404A DISC (ALL S/B MODELS) N/A POA
062 A16657 LABEL INTERCEPTOR £3.15 Add
064 A02571 LABEL WARNING ALL MODELS £2.03 Add
066 A16658 LABEL ROVER-REAR £3.15 Add
067 G1810012 HANDLE REAR FLAP (ALL S/B) £3.00 Add
068 G1810053 SPACER FRONT WHEEL £1.70 Add
2364 3 (OBSOLETE) N/A POA
2437 112731350/0 SELF-TAP SCREW TE 5.5 x 19 £2.46 Add
2437 112731350/0 SELF-TAP SCREW TE 5.5 x 19 £2.46 Add
2437 112731350/0 SELF-TAP SCREW TE 5.5 x 19 £2.46 Add
2437 112731350/0 SELF-TAP SCREW TE 5.5 x 19 £2.46 Add
2437 112731350/0 SELF-TAP SCREW TE 5.5 x 19 £2.46 Add
