MTD014421 - Basic machine

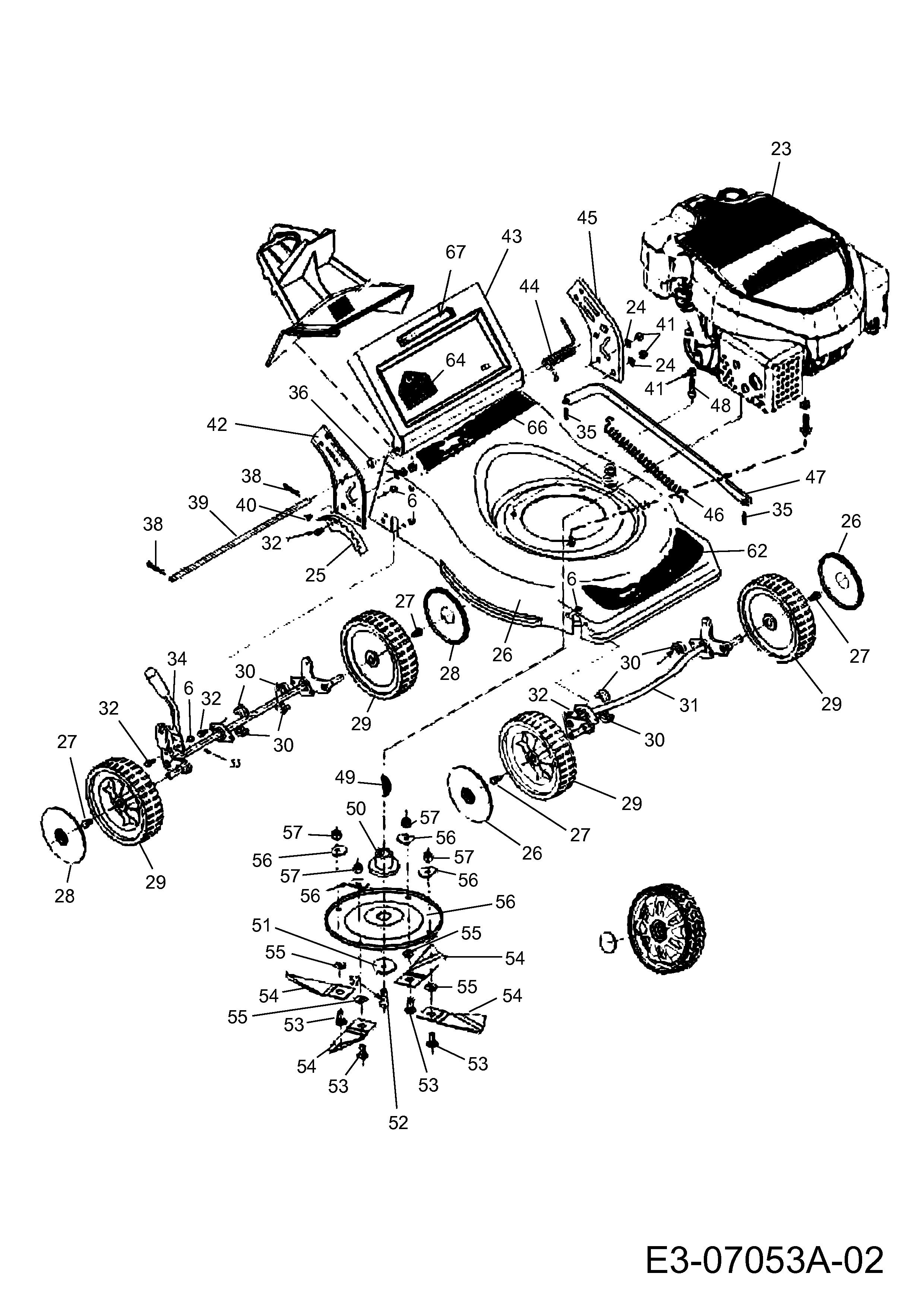

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
006	GB61826	NO LONGER AVAILABLE	N/A	POA
023	L04080119	ROVER i4000 RCOWL 1P61FA 140CC	£422.40	Add
024	GB9718	WASHER FLAT 8MM(ALL S/B MODELS	N/A	POA
025	G1810038	NO LONGER AVAILABLE	N/A	POA
026	G183ASG1		N/A	POA
027	GB5787816	NO LONGER AVAILABLE	N/A	POA
028	RG1810058-R1		N/A	POA
029	G1801000	WHEEL 7 INCH X1.75 INCH S/B MODELS	£16.79	Add
030	G1801	NO LONGER AVAILABLE	N/A	POA
031	G1810032	NO LONGER AVAILABLE	N/A	POA
032	GB5787616	NO LONGER AVAILABLE	N/A	POA
033	G1810044	NO LONGER AVAILABLE	N/A	POA
034	G1810036	LEVER CUTTING HEIGHT ADJ.	£4.85	Add
035	RGXSZ56-1-17		N/A	POA
036	G1810057	NO LONGER AVAILABLE	N/A	POA
038	GXSS4606	NO LONGER AVAILABLE	N/A	POA
039	GXSS4604	NO LONGER AVAILABLE	N/A	POA
040	GB801816	NO LONGER AVAILABLE	N/A	POA
041	GB61828	NO LONGER AVAILABLE	N/A	POA
042	G188ASG1	RIGHT BRACKET SILVER/GREY S/B	N/A	POA
043	G1810010	REAR DISCHARGE FLAP(ALL S/B)	£13.60	Add
044	G1805	NO LONGER AVAILABLE	N/A	POA
045	G187ASG1	LEFT BRACKET SILVER/GREY S/B	N/A	POA
046	G1810016	NO LONGER AVAILABLE	N/A	POA
047	G1810035	NO LONGER AVAILABLE	N/A	POA
048	GB5787840		N/A	POA
049	GB1099-46516	NO LONGER AVAILABLE	N/A	POA
050	G1820002	DISC BOSS (ALL S/B MODELS)	£18.67	Add
051	G1804	NO LONGER AVAILABLE	N/A	POA
052	G1808	NO LONGER AVAILABLE	N/A	POA
053	G18401	BLADE BOLT (ALL S/B MODELS)	N/A	POA
054	G1800081	BLADE (ALL S/B MODELS)	£4.59	Add
055	G18403	TENSION WASHER (ALL S/B MODELS	N/A	POA
056	G18402	D PLATE (ALL S/B MODELS)	N/A	POA
057	GB618210	NO LONGER AVAILABLE	N/A	POA
058	G18404A	DISC (ALL S/B MODELS)	N/A	POA
062	A16652	NO LONGER AVAILABLE	N/A	POA
064	A02571	LABEL WARNING ALL MODELS	£2.34	Add
066	A16658	NO LONGER AVAILABLE	N/A	POA
067	G1810012	HANDLE REAR FLAP (ALL S/B)	£2.89	Add
068	G1810053	NO LONGER AVAILABLE	N/A	POA
