MTD014268 - Gearbox, Engine pulley, Rear wheels

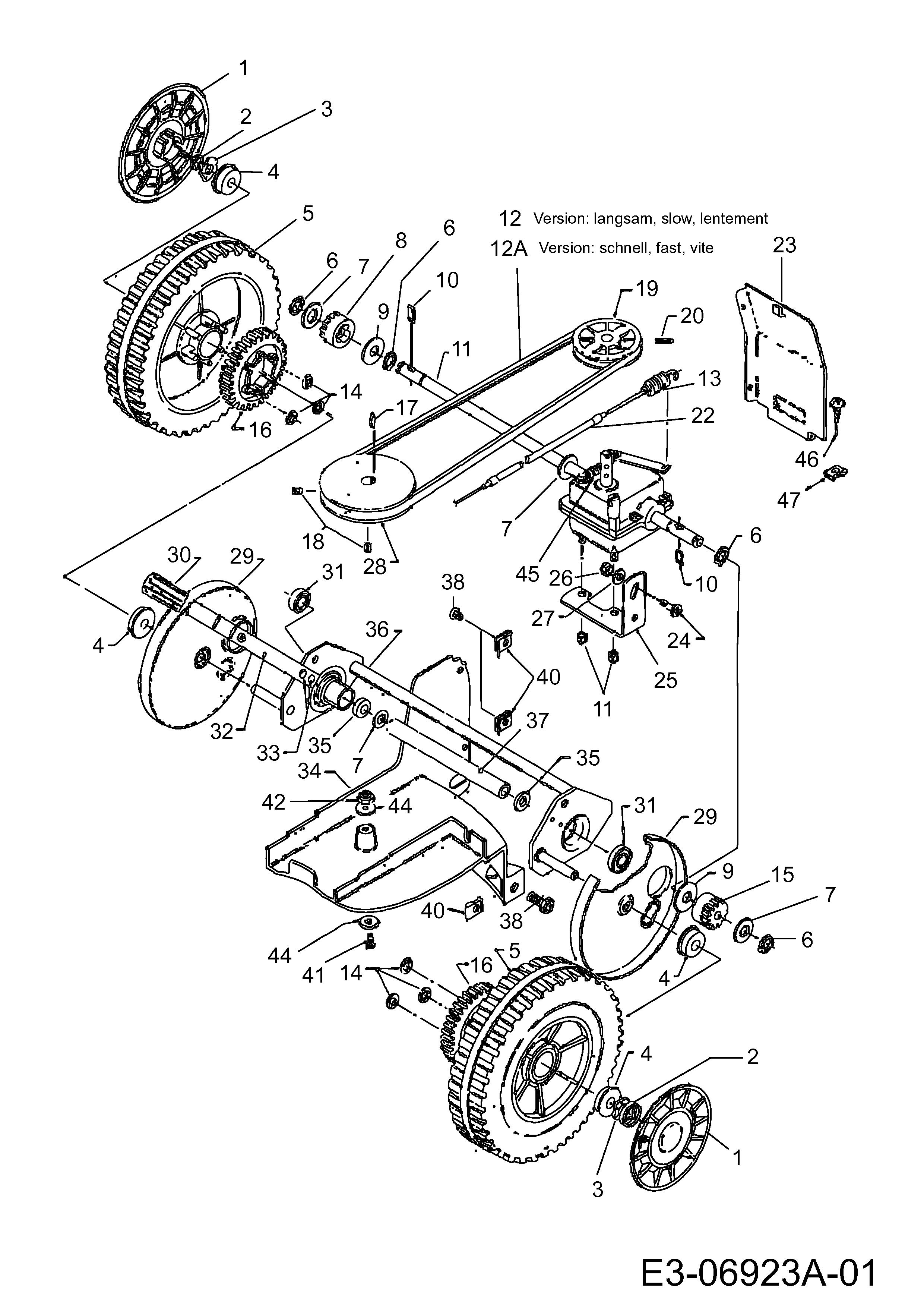

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD014268

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 731-09417 HUB CAP BLACK ICE (OBSOLETE) N/A POA
002 736-04645 RATCH PLATE DOM £4.79 Add
003 736-05009 FLAT WASHER £2.69 Add
004 741-04317 BEARING-BALL (OBSOLETE) (OBSOLETE) (OBSOLETE) N/A POA
005 A10628 WHEEL ASSY MOD 70/75 S/PROP N/A POA
006 SG-144590 CIRCLIPS D=12 UNI 7435 £3.23 Add
007 A03713 PINION WASHER 70/75 N/A POA
008 A036756K DRIVE PINION KIT(MOD70/75) N/A POA
009 A03712 PINION WASHER INNER 70/75 £2.02 Add
010 748-04296 PAWL MOD 70/75 (OBSOLETE) (OBSOLETE) N/A POA
011 618-05116 GEARBOX MODEL 70/75 A03666 £184.58 Add
012 754-05006 BELT 18" S.P A16120 £15.07 Add
013 A03715 CLUTCH SPRING £2.66 Add
014 A04077 RATCHET PLATE £1.81 Add
015 A036756K DRIVE PINION KIT(MOD70/75) N/A POA
016 717-05012 GEAR-ASSY A03717 £7.90 Add
017 714-0365 KI PRO KEY £2.18 Add
018 710-1842A PLUG,PIPE £1.86 Add
019 A03660 PUL:4.50 DIA £13.82 Add
020 A04073 N/A POA
022 746-05000 CLUTCH CABLE £9.88 Add
023 787-02090 PANEL MODEL 70/75/35M A03690 £5.82 Add
024 A04057 Bolt £1.77 Add
025 A03661 GEARBOX RETAINER MOD 70/75 N/A POA
026 712-04351 HEXAGON NUT £1.45 Add
027 A02209 WASHER FLAT N/A POA
028 756-04517 ENGINE PULLEY 18"SP A16119 (OBSOLETE) N/A POA
029 787-02093 BACK PLATE MOD 70/75 A03671 £6.47 Add
030 731-08955 GRIP (DOM) A03250 £1.86 Add
031 2010-ZZ-6001 BEARING £5.70 Add
032 687-05031 LEVER HEIGHT ADJ 30/35/70/75 A10460 (OBSOLETE) (OBSOLETE) N/A POA
033 A293158 RIVET F/HD 1/4 X 1/2 £1.57 Add
034 731-08899 USE 16029 A03885 £9.92 Add
035 A03699 DUST PROOF RUBBER £1.72 Add
036 A10582 REAR AXLE ASSY MOD 70/75 S.P. N/A POA
037 A03719 AXLE COVER MOD 70/75 (OBSOLETE) N/A POA
038 A04113 SCREW N/A POA
040 A04070 SCHRAUBE N/A POA
041 710-06034 SCREW £46.20 Add
042 712-04343 LOCKNUT £1.27 Add
043 A040091 N/A POA
044 A02216 WASHER £1.50 Add
045 A16122 CLUTCH RETURN SPRING MOD 70 -X £11.17 Add
046 A04036 N/A POA
047 A04089 'U' - NUT £1.50 Add
12A A03692 BELT MOD 7032 -X (OBSOLETE) N/A POA
