MTD015627 - Gearbox

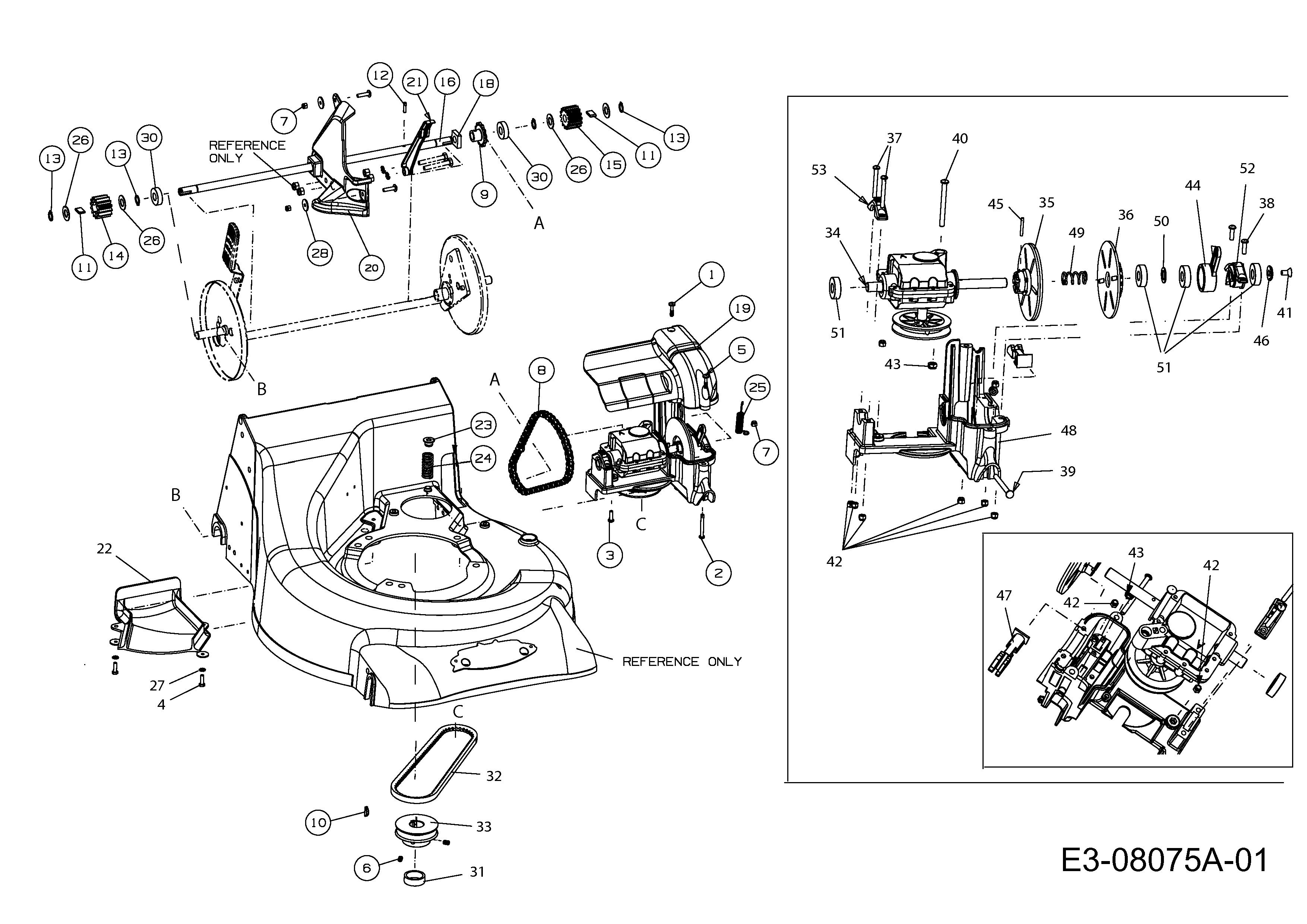

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD015627

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 710-05432 SCREW £1.27 Add
002 710-05486 SCREW M5X40 £1.48 Add
003 710-05488 SCREW M5X16 £1.33 Add
004 710-05493 SCEW HEX M5X16 £2.35 Add
005 710-06084 SCREW M5X20 £2.02 Add
006 710-1842A PLUG,PIPE £1.86 Add
007 712-04328 NYLOC NUT £1.27 Add
008 713-04131 CHAIN 20"/22" A16078 (OBSOLETE) (OBSOLETE) N/A POA
009 713-05000 SPROCKET (OBSOLETE) (OBSOLETE) N/A POA
010 714-0365 KI PRO KEY £2.18 Add
011 714-05000 PAWL MOD 60 (OBSOLETE) (OBSOLETE) N/A POA
012 715-04137 ROLL PIN 5/32"X3/4" A04174 £1.45 Add
013 SG-144590 CIRCLIPS D=12 UNI 7435 £3.23 Add
014 717-05002 PINION R.H MOD 60 £4.74 Add
015 717-05003 PINION L.H MOD 60 £4.74 Add
016 718-05004 DRIVE SHAFT 20" (OBSOLETE) N/A POA
018 721-04600 SEAL FELT MOD 60 (OBSOLETE) N/A POA
019 731-09034 FRAME COVER A16063 £15.47 Add
020 731-09038 CHAIN CASE 20/22" S.PROP. A16066 £14.20 Add
021 731-09039 CHAIN TENSIONER £1.94 Add
022 731-09043 BELT COVER 20/22" (OBSOLETE) (OBSOLETE) N/A POA
023 732-05001 CAP SPRING A16061 £2.45 Add
024 732-05002 SPRING GEARBOX A16064 £2.79 Add
025 732-05005 SPRING CAM LEVER (OBSOLETE) N/A POA
026 736-04628 WASHER £1.34 Add
027 736-04651 FLAT WASHER £1.64 Add
028 736-04655 FLAT WASHER £1.67 Add
030 2010-ZZ-6001 BEARING £5.70 Add
031 750-06010 SPACER ENG PULLEY 20" A16182 £5.63 Add
032 754-04335 V BELT (OBSOLETE) N/A POA
033 756-04512 PULLEY-HYDRO ENGINE (OBSOLETE) N/A POA
034 618-06036 TRANSMISSION ASSY £123.58 Add
035 618-05003 CLUTCH PLATE (OBSOLETE) N/A POA
036 618-06031 CLUTCH PLATE W/O LINING 60-80 (OBSOLETE) N/A POA
037 710-05486 SCREW M5X40 £1.48 Add
038 710-05488 SCREW M5X16 £1.33 Add
039 710-05490 SCREW M6 X 70 A04161 £2.38 Add
040 710-05491 SCREW £1.90 Add
041 710-05492 SCREW £1.45 Add
042 712-04328 NYLOC NUT £1.27 Add
043 712-0691 HEX NUT M6 DIN 985 £1.28 Add
044 717-05004 CAM LEVER (OBSOLETE) N/A POA
045 718-05005 ROLL PIN GEARBOX DRIVE SHAFT £1.67 Add
046 726-04132 THRUST CAP 61/80 £1.93 Add
047 731-09037 WEDGE TENSIONER 20"/22" A16069 £1.67 Add
048 731-09048 DRIVE FRAME A16131 £15.00 Add
049 732-05007 CLUTCH SPRING(OBSOLETE) N/A POA
050 736-05002 THRUST WASHER £4.05 Add
051 2010-ZZ-6001 BEARING £5.70 Add
052 741-05000 BEARING RETAINER £4.74 Add
053 741-05006 BEARING CUP A16062 £1.94 Add
