MTD015623 - Cutting hight adjustment

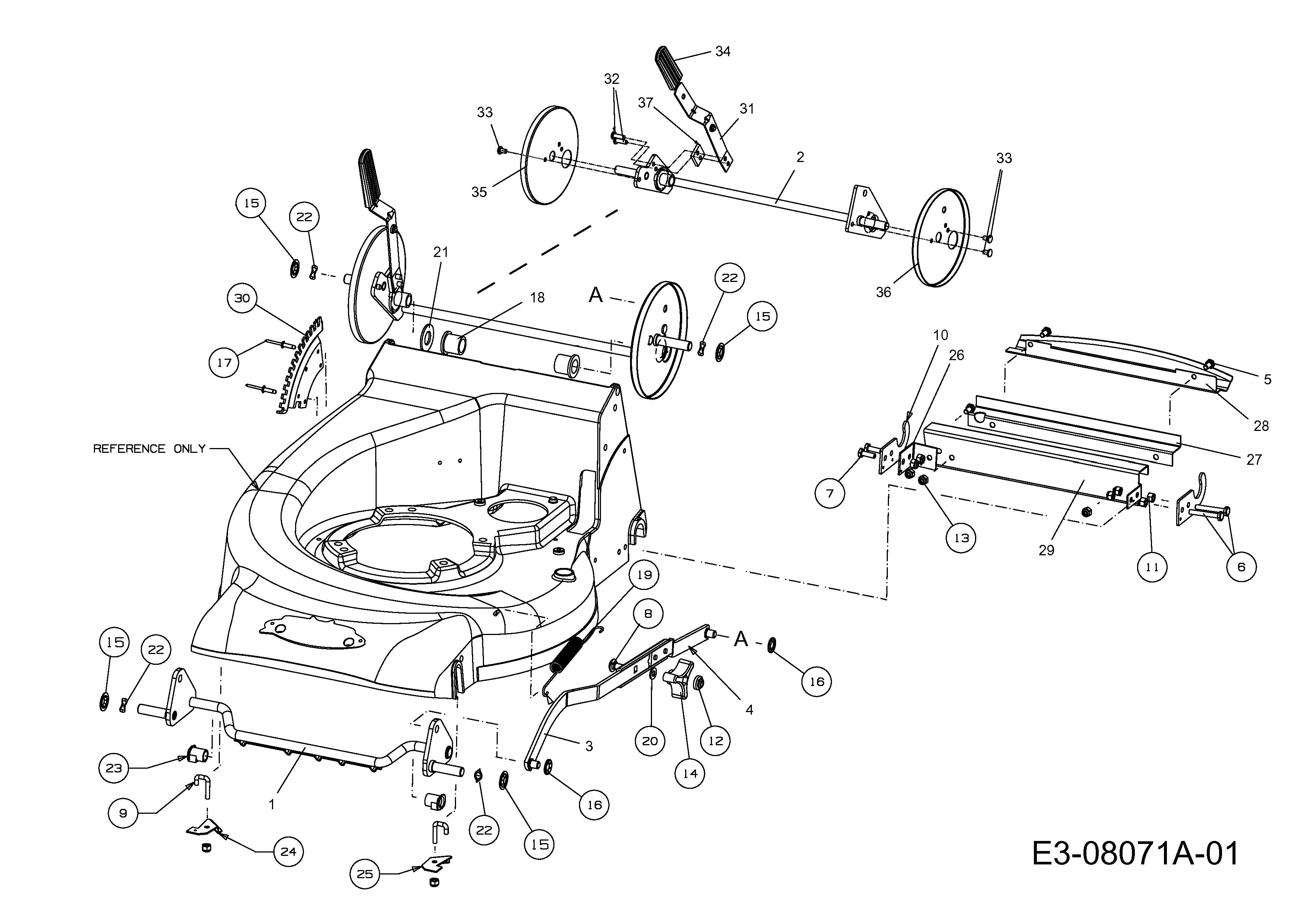

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD015623

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 611-05013 FRONT AXLE £40.46 Add
002 611-05000 REAR AXLE N/A POA
003 647-05010 BAR ASSY FRONT MTD RED £14.34 Add
004 647-05012 CONBAR REAR ASSY 20" MULCH £14.60 Add
005 710-05481 SETSCREW 1/4X1/2 UNC HX £1.51 Add
006 710-05482 SET SCREW £1.75 Add
007 710-05484 SCREW 1/4 X 0.75 £1.67 Add
008 710-05487 BOLT (SV4/SV4M) £2.08 Add
009 710-05500 CLAMP BOLT £2.08 Add
010 711-06001 AXLE SUPPORTS £2.15 Add
011 712-04347 NUT HEX 1/4-20 £1.25 Add
012 712-04349 NUT £1.34 Add
013 712-04351 HEXAGON NUT £1.45 Add
014 720-04187 VANE ACTUATOR KNOB £1.82 Add
015 726-0221 PUSH CAP £1.69 Add
016 726-04052 CLIP £2.50 Add
017 728-05002 RIVET £1.31 Add
018 731-09046 BUSH £1.73 Add
019 732-05003 SPRING CONBAR £5.39 Add
020 736-04650 WASHER FLAT £1.33 Add
021 736-04652 WASHER FLAT £2.38 Add
022 736-0504 WAVE WASHER £1.26 Add
023 741-05002 BUSHING £1.43 Add
024 787-02113 BRACKET £2.05 Add
025 787-02114 AXLE BRACKET LH £2.57 Add
026 787-02133 BRACKET STONE GUARD MOUNT 60 A03391 £2.94 Add
027 787-03008 SHIELD DRIVE SHAFT MOD 60 A03393 £4.54 Add
028 787-03009 EXTENSION PIECE MOD 60CE (OBSOLETE) N/A POA
029 787-03023 GUARD STONE MOD 60 A03383 £7.96 Add
030 787-03025 HEIGHT ADJUSTMENT £8.91 Add
031 687-02630 HIGH CONTROL LEVER £4.67 Add
032 728-04073 RIVET £1.73 Add
033 728-05011 RIVET £1.66 Add
034 731-08955 GRIP (DOM) A03250 £1.86 Add
035 787-02137 COVER WHEEL INNER RIGHT £8.15 Add
036 787-02138 BACK PLATE 20" L.H A03381 £6.24 Add
037 787-02143 SPACER PLATE £2.71 Add
