MTD015585 - Washer nozzle

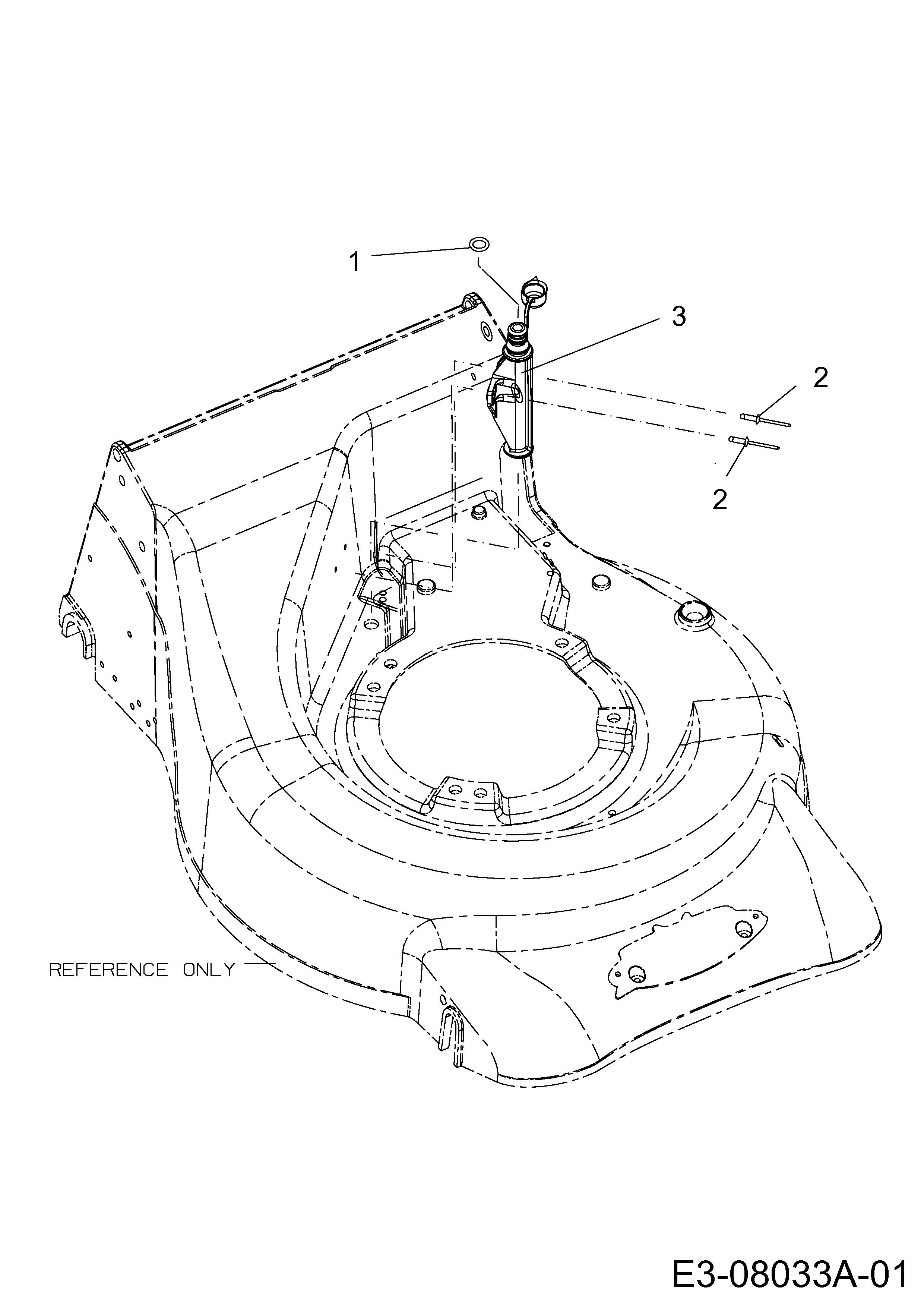

Assembly drawing

Please use your mouse to zoom in and out for more detailed view


Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 721-04484 O-RING £1.31 Add
002 728-04074 RIVET £1.27 Add
003 731-09073 WASHPORT MOULDING EXPORT A16302 £2.53 Add
