MTD016119 - Mowing deck S (42"/107cm)

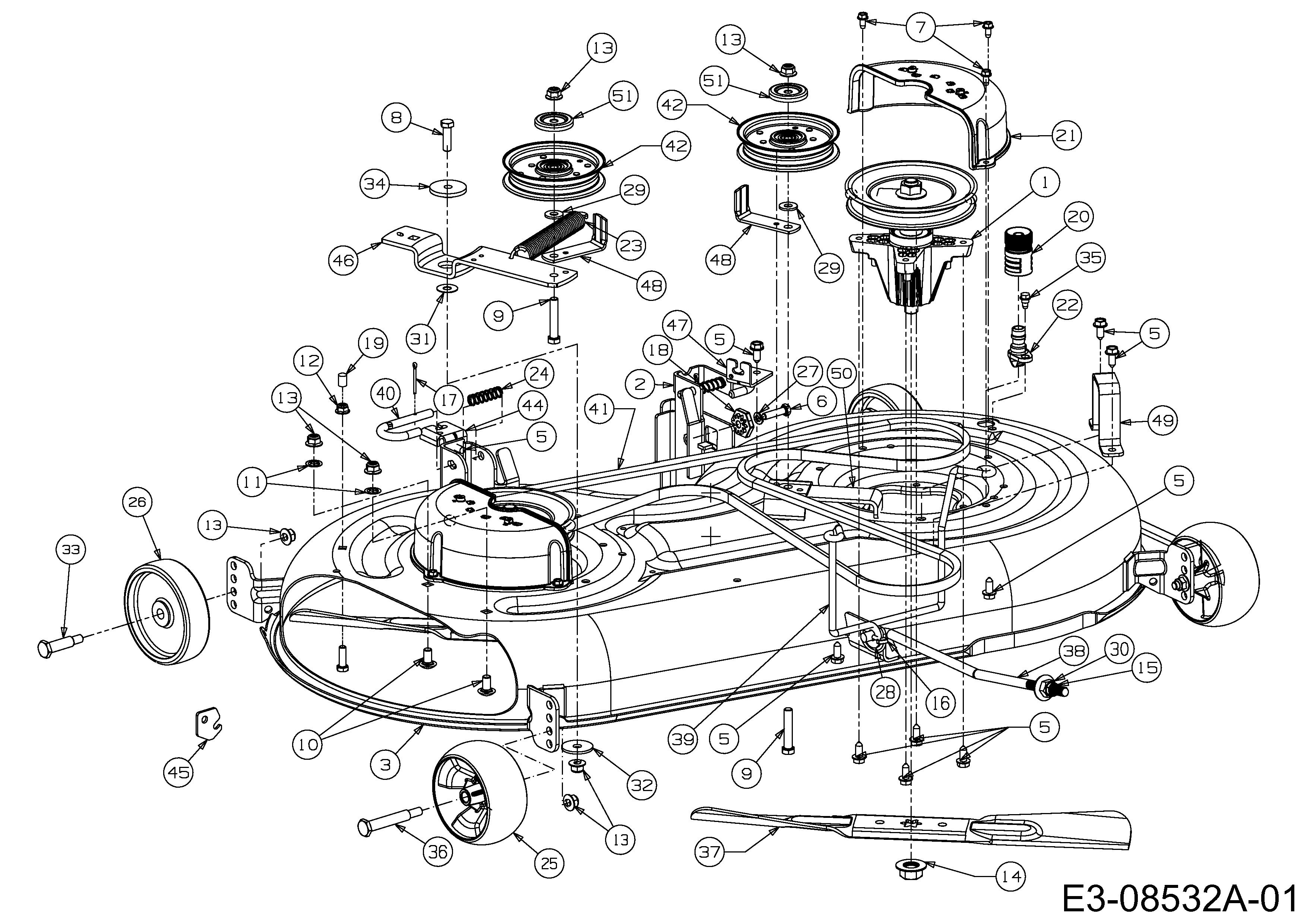

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	618-04822A	SPDL ASM:PUL:5.695 DIA X .5625	£121.70	Add
002	683-0254B	BRKT:ASM:DECK:HNGR LH LT (OBSOLETE)	N/A	POA
003	683-04598A-S	SHELL 42" DECK	N/A	POA
005	710-04484	SCR:TT:5/16-18:.750:HXINDWSH	£5.27	Add
006	710-0528	SCREW (DNR)	£3.55	Add
007	710-0599	HEX TT SCREW 1/4-20	£4.95	Add
008	710-3005	BOLT	£3.24	Add
009	710-3144	SCREW	£3.28	Add
010	710-3178	BOLT SHORT NECK CARR	£11.46	Add
011	712-0229	NUT PUSH	£5.20	Add
012	712-04063	FLANGED NUT	£4.20	Add
013	712-04065	NUT	£4.02	Add
014	712-05134	BLADE NUT	£3.81	Add
015	712-04243	NUT	£5.00	Add
016	714-0220A	PIN:LYNCH:.1875	£7.99	Add
017	714-0470	COTTER PIN	£5.07	Add
018	717-04074	GEAR DECK ADJUSTMENT	£11.11	Add
019	720-05010	CAP VINYL	£4.62	Add
020	721-04041	ADAPER:WATER NOZZLE	£16.76	Add
021	731-06496	COVER DECK BELT 46"	£28.82	Add
022	731-07487	NOZ:DECK WSH	£16.29	Add
023	732-0459C	EXTENSION SPRING	£18.91	Add
024	732-04652	SPR:COMP:.535 OD x 1.751 LG	£8.11	Add
025	734-04155	WHEEL:DECK	£16.47	Add
026	734-0973	WHEEL DECK 5in. DIA	£11.16	Add
027	736-0119	LOCK WASHER 5/16	£3.33	Add
028	736-0179	WASHER-FL	£14.34	Add
029	736-0300	WASHER	£2.81	Add
030	736-0317	BELLE WASHER	£8.58	Add
031	736-0344	WASHER:FLAT:.385x1.000x.030	£7.50	Add
032	736-3039	WASH:FLAT:.406 x 1.5 x .105	£2.00	Add
033	738-0373	AXLE BOLT	£6.84	Add
034	738-04162C	SPACER	£5.00	Add
035	738-04278	SCR:SHLDR:1/4-20:0.50:HXINDWSH	£3.49	Add
036	738-3056	SHOULDER BOLT	£12.94	Add
037	742-04312	BLADE 21,23"	£57.87	Add
038	747-04944B	ROD:LIFT:DECK:SMALL	£37.79	Add
039	747-05171A	BELT KEEPER ROD	£35.76	Add
040	747-1116	QUICK RELEASE PINS RH LONG	£14.71	Add
041	754-04060C	BELT	£62.72	Add
042	756-04129C	PUL:IDLR:4.25" DIA 756-04129	N/A	POA
043	771-11725A	TAG:DNGR:RT-99 CHUTE BLNGL	N/A	POA
044	783-04740	BRKT:CBL:DECK ENGAGE (OBSOLETE)	N/A	POA
045	783-05219	BRKT:STOP:CHUTE 50"/54"	£14.15	Add
046	783-05946	BRACKET-IDLER PIVOT	£23.64	Add
047	783-06243		N/A	POA
048	783-06368A-S	GUIDE ASSY-BELT	£21.57	Add
049	783-06632		N/A	POA
050	783-06643		N/A	POA
051	783-07236	PULLEY CAP	£10.42	Add
