MTD016126 - Mowing deck F (38"/96cm)

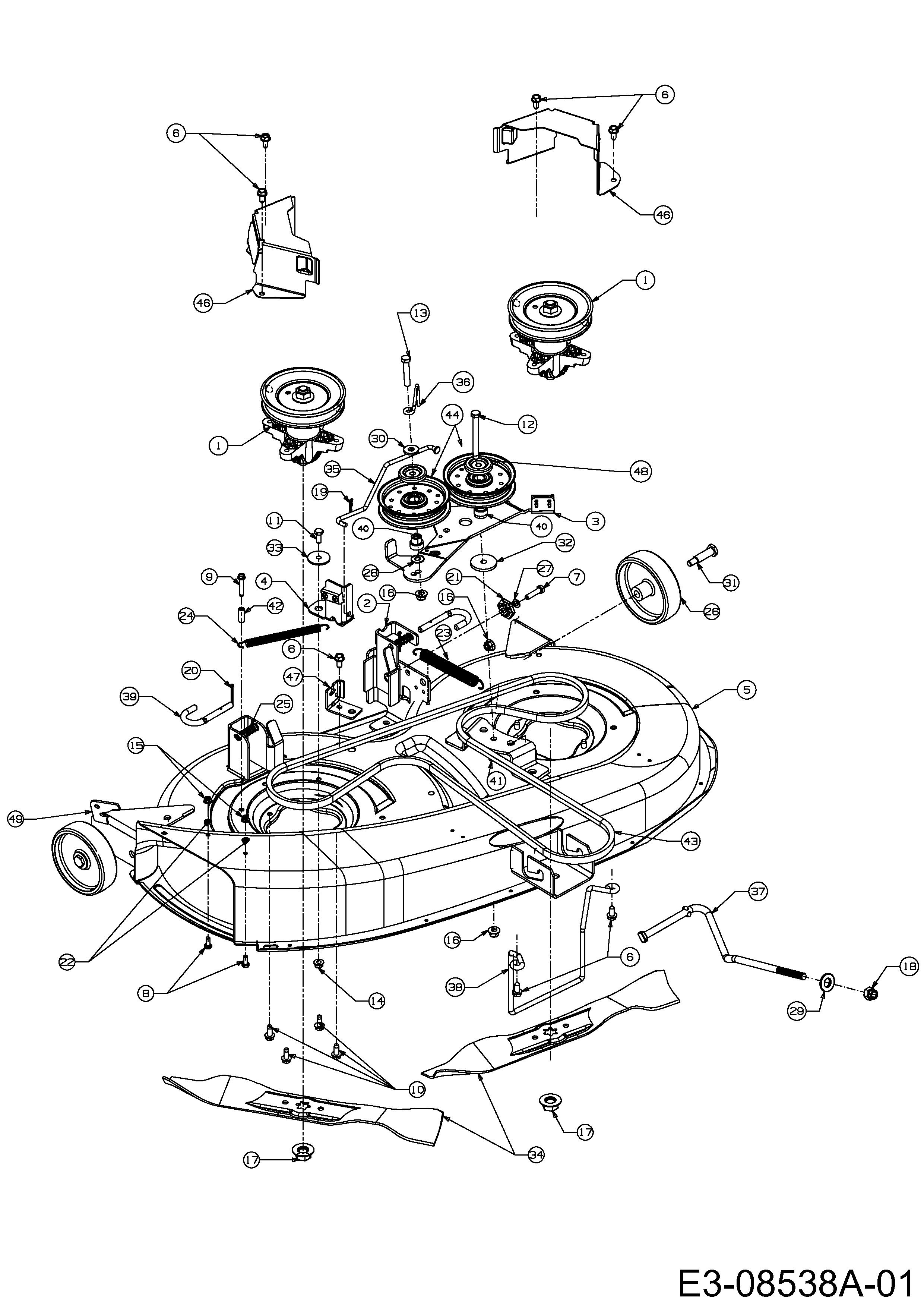

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	618-04474B	SPINDLE 5.75 INCH DIA	£132.96	Add
002	683-0254B	BRKT:ASM:DECK:HNGR LH LT (OBSOLETE)	N/A	POA
003	683-04138B	BRAKE ASM:DECK:42"	£40.90	Add
004	983-04167	BRAKE ASM:DECK 42" 683-04167	£23.95	Add
005	683-04264B	DECK ASM:SD:38" w/WHL BRKTS	N/A	POA
006	710-04484	SCR:TT:5/16-18:.750:HXINDWSH	£5.27	Add
007	710-0528	SCREW (DNR)	£3.55	Add
008	710-0751	BOLT 069	£3.39	Add
009	710-0778	HEX WASHER HEAD SCREW	£3.20	Add
010	710-1260A	SCREW	£4.00	Add
011	710-3008	HEX BOLT	£3.03	Add
012	710-3085	HHCS 3/8 16 3.50 GR5 STD	£3.55	Add
013	710-3144	SCREW	£3.28	Add
014	712-04063	FLANGED NUT	£4.20	Add
015	712-04064	NUT FLGLK 1/4 20 GRF NYLON	£6.63	Add
016	712-04065	NUT	£4.02	Add
017	712-05134	BLADE NUT	£3.81	Add
018	712-04243	NUT	£5.00	Add
019	714-0104	PIN INTERNAL COTTER	£2.78	Add
020	714-0470	COTTER PIN	£5.07	Add
021	717-04074	GEAR DECK ADJUSTMENT	£11.11	Add
022	726-0233	NUT:PUSH:.25 ID X .50 OD	£3.58	Add
023	732-04280B	EXT SPRING	£18.09	Add
024	732-04287	EXT SPRING	£16.41	Add
025	732-04652	SPR:COMP:.535 OD x 1.751 LG	£8.11	Add
026	734-0973	WHEEL DECK 5in. DIA	£11.16	Add
027	736-0119	LOCK WASHER 5/16	£3.33	Add
028	736-0300	WASHER	£2.81	Add
029	736-0317	BELLE WASHER	£8.58	Add
030	736-3052	WASH:FLAT:.406 X 1.00 X .105	£3.77	Add
031	738-0373	AXLE BOLT	£6.84	Add
032	738-04162C	SPACER	£5.00	Add
033	738-04166	SPACER	£5.21	Add
034	742-0610A	BLADE 19.38" FOR 38" DECK	£43.75	Add
035	747-04381	BRAKE ROD 38"	£18.78	Add
036	747-04530	ROD KEEPER	£19.05	Add
037	747-05061	ROD:DECK 38" EURO COVER	£32.18	Add
038	747-05171A	BELT KEEPER ROD	£35.76	Add
039	747-1116	QUICK RELEASE PINS RH LONG	£14.71	Add
040	748-05029	SPCR:SHLDR:TOGGLE LOCK (OBSOLETE)	N/A	POA
041	750-04446	SPCR:3/8 ID x.68 OD x 1.46 LG	£7.37	Add
042	750-0566A	SPACER	£7.75	Add
043	754-04198C	BELT:V TYP:A SELECTION X 88.80 754-04198B	£115.10	Add
044	756-05042	PUL:IDLR:4.25"DIA:HD	£32.84	Add
045	771-11725A	TAG:DNGR:RT-99 CHUTE BLNGL	N/A	POA
046	783-04602A	CVR:BELT:5.66 DIA	N/A	POA
047	783-04740	BRKT:CBL:DECK ENGAGE (OBSOLETE)	N/A	POA
048	783-08389		£9.42	Add
049	783-1025	STOP:CHUTE	£7.30	Add
